Swinging Gates

Local gate service specializes in the repair, maintenance, sales, and installation of Swinging Gate Operators. We are proudly serving the Golden Gate community. With a Swinging Gate Operator, your life will be a lot simpler. There is no more need to get out of your vehicle and manually move your swinging gate. With the push of a button, the electric motorized arm will swing your gate open, allowing you to enter your or your business’ property. We not only specialize in selling/installing the Swinging Gate Operator, rest assured, we also repair them. If you ever have problems in the future or you are currently in need of repairing your Swinging Gate Operator, don’t hesitate: give us a call.

Specs:

Operational Voltage … 24 VDC with 1/2 HP Motor

Main Power Source … 120 / 220 VAC Single Phase

Battery … 7 AmpHr 12 VDC x 2

Max Gate Capacity … 650 lbs / 12

Max Operating Speed … 13-15 seconds per 90°

Battery Backup … 400 Full Cycles (500 lbs. / 12’ gate)

Maximum Duty Cycle … 100% Continuous Cycle

Operating Temperature … – 4° F to + 158° F

Viking I-8 Dual In-Ground opener w/ Dual Control Panel

  • Max gate weight: 650 lbs.
  • Max gate size: 12ft
  • This kit includes a controller and 2 underground unit

The Viking I-8 in-ground swing gate opener is used mainly for residential locations that require the operator to be as invisible as possible.  Most swing gate openers have to be either mounted on a cement pad or arms will be mounted directly on the gate.  The Viking I-8 swing gate operator is mounted underground, so you will not be able to see that there is a motor operating thegate.  This also makes sure that no one will be able to tamper with your operator.

Features:

3 year residential and 2 year commercial warranty

UL 325 and 991 listing

water resistant gear head unit

single stage

efficient gearing system

key for manual release

powerful and efficient DC motor in direct-drive configuration

aluminum, stainless steel and plated steel Internal parts

built in battery backup (400 cycles)



Viking G5s Solar Powered Swing Gate Opener

  • Max gate size: 16ft
  • Max gate weight: 1,000 lbs.
  • MUST HAVE SOLAR PANEL TO FUNCTION

The Viking G5s Solar Powered Swing Gate Opener Once again raises the bar and sets a new standard in solar operation. Introducing the newly design G-5s. Viking’s state of the art Solar Technology has achieved the ONLY UL certification for number of daily solar cycles in the world. Therefore Viking Access Systems is the ONLY choice for high efficiency, high performance solar gate operator.

A true milestone among all gate operators. Although it only requires one 12V battery and one 12V solar panel, the G5 is still a 24VDC motor. This gives you the flexibility of gate length and size for your solar application and allows the G5 a max capacity of 1,000 pounds. Going green has never been easier, weather you are looking for a new opener at your home or ranch, the Viking G5 solar is the best option. This operator comes with a 4 year residential warranty, one of the longest ever offered for a linear arm actuator.

Viking G5 NX Next Generation DUAL Swing Gate Openers

Features:

  • Operational Voltage ……. 24 DC with 1/2HP Motor
  • Main Power Source …… 115 / 230 AC Single Phase
  • 24 AC/DC Solar Compatible Battery ……………………… 12 DC x 2
  • Max Gate Capacity …….. 2000 lbs. / 10′ or 800 lbs. / 18′
  • Max Operating Speed …. 14-16 Seconds per 90°
  • Battery Backup …………… 400 Full Continuous Duty Cycle
  • (600 lbs)Maximum Duty Cycle ….. 100% Continuous Cycle
  • Operating Temperature … -4° F to 160° F
  • Max gate size: 18ft*
  • Max gate weight: 2,000 lbs.*

Package includes a control panel that handles 2 arms as well as the dual arms themselves. All you need to add is a photoeye

The newly redesigned G-5™ leads the industry in linear actuator swing gate operators. This new design allows for a maximum gate capacity of 2000 lbs., 135 degrees of travel and 100% duty cycle operation. Featuring a convenient electronic manual release and pre-wired for easy and quick installation. The G-5™ is now powered by the VFlex control board, including speed control and diagnostic LCD display. This new design is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. The G-5™ offers an increased 3 year commercial or 4 year residential warranty and ETL and UL compliance.



Viking F-1 NX UL Swing Gate Opener

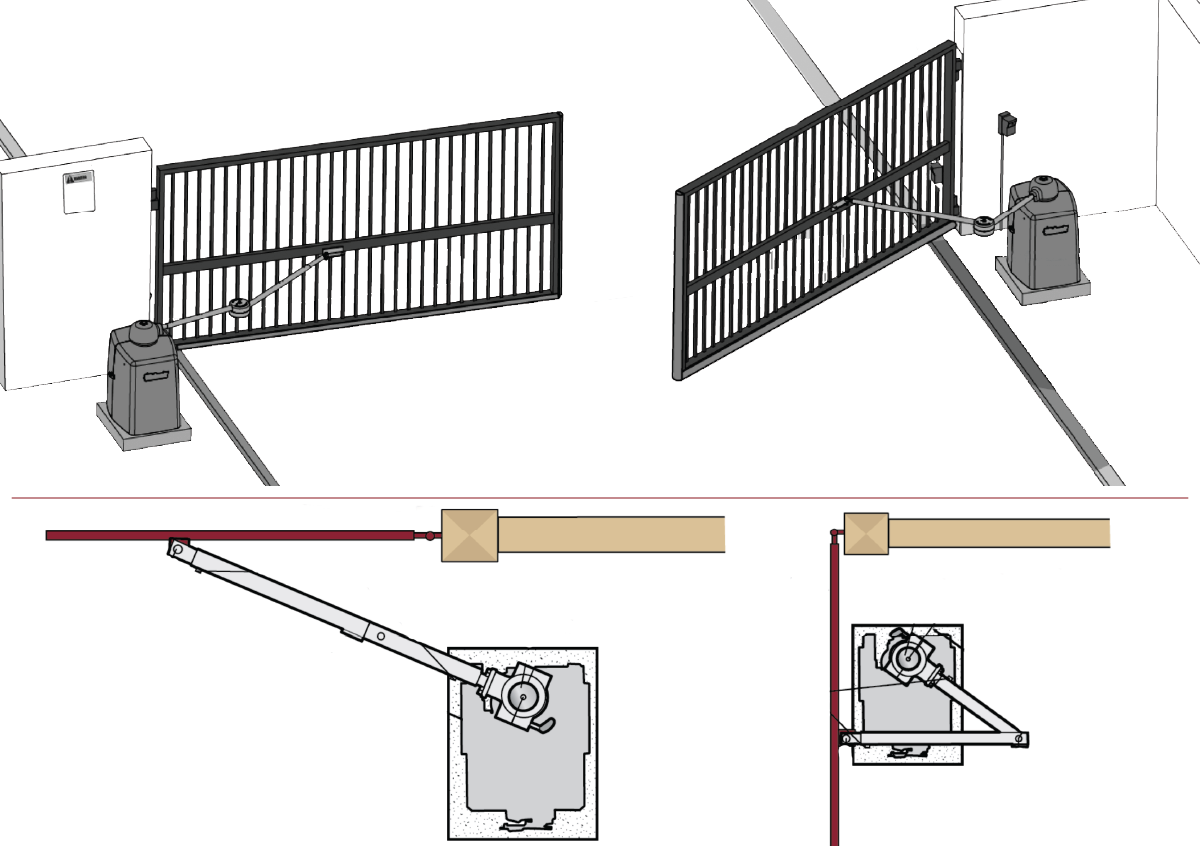

Viking floor mount swing operating system

Specs:
  • Operational Voltage … 24 VDC with 1/2 H.P. Motor
  • Main Power Source … 120 / 220 VAC Single Phase
  • Battery … 7 AmpHr 12 VDC x 2
  • Max Gate Capacity … 1200 lbs /12′ or 800 lbs /16′
  • Max Operating Speed … 13-16 seconds per 90°
  • Battery Backup … 300 Full Cycles (600 lbs. / 12′ gate)
  • Maximum Operational Duty … Continuous Cycle
  • Operating Temperature … – 4° F to + 158° F
  • Max gate size: 16ft*
  • Max gate weight: 1,500 lbs*

The Viking F-1 NX UL Swing Gate Opener is one of the industries best swing gate operators.  It has features that include battery backup, heaters, and lightning protection.  This gate operator has a max capacity of 1200 pounds for a gate that is 12 feet long, or a gate that is 800 pounds and 16 feet long.  The Viking F1 Swing Gate Opener comes with a 7 year residential and a 5 year commercial warranty.

Features:

  • Compatible with Viking wireless products
  • Battery Backup
  • Lightning protection – up to 20,000V
  • Multi layer corrosion protection
  • Integrated heater
  • Solar smart
  • Diagnostic display
  • Warranty – 7 year residential, 5 year commercial
  •



Liftmaster LA500PKGU Dual 24VDC

Features:
  • SOLAR-READY ULTRA-RELIABLE SYSTEM
  • LED DIAGNOSTIC DISPLAY
  • WIRELESS DUAL-GATE COMMUNICATION
  • BI-PART DELAY
  • PROGRAMMABLE AUXILIARY RELAYS
  • ANTI-TAILGATE
  • PRE-MOTION WARNING ALARM
  • SYNCHRONIZED CLOSE
  • HOMELINK® COMPATIBLE
  • SECURITY+ 2.0® ON-BOARD RADIO RECEIVER

Specifications:

  • POWER: Full-time AC-run operation 120V/230V Single Phase
  • ACCESSORY POWER: 24VDC 500mA output. Switched and unswitched power
  • MONITORED SAFETY INPUTS: 3 Main Board, 3 Expansion Board
  • TEMPERATURE SPECIFICATIONS: -4°F (-20°C) to 140°F (60°C)
  • UL USAGE CLASSIFICATION: I, II, III, and IV
  • GATE TRAVEL SPEED: 90-degree opening in 15-17 seconds.
  • Max gate size: 18ft
  • Max gate weight: 1,600 lbs.
  • Light to medium use
  • Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs

The Liftmaster LA500PKGU Swing Gate Opener is a Residential/Light Commercial Linear Actuator with Monitored Photo Eye

LA500PKGU Dual Package Includes:

2 – LA500DC linear actuator arm with brackets
1 – Control panel with circuit board
1 – Set of Liftmaster LMRRU Monitored Safety Photo Eyes
1 – Free Liftmaster 811lm remote

Liftmaster LA500PKGU Dual Residential/Commercial Swing Gate Opener

The Liftmaster LA500PKGU Dual is designed to be used in a residential location, but it is not uncommon to be used in small commercial locations.  The LA500PKGU includes settings such as Soft Start/Stop and Mid-Travel Reversal, Commercial-Duty Cast Aluminum Housing with Heavy-Duty DC Motor, Inherent Reversing Sensor, Fire Department Compliance, Keyed Manual Disconnect, Surge Suppression, Quick Close/Anti-Tailgate, and  Molecularly Bonded Coating.  The LA500 Swing Gate Opener is one of our best selling products, and are one of the most reliable operators on the market.

Construction:

  • P3 MOTOR: 24VDC continuous-duty motor
  • OPERATOR DUTY RATING: Continuous duty, 300 cycles per day
  • CHASSIS: Commercial-duty aluminum die-cast housing
  • WORM GEAR REDUCTION: Precision-machined all-metal gear in contained lubrication housing
  • OPERATOR WEIGHT: Actuator arm 35 lbs. Standard control box 13 lbs. • Includes (2) 7Ah batteries
  • RECOMMENDED CAPACITIES: Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs



Liftmaster CSW200101UL AC

Specifications:

POWER: 120V/230V Single Phase

ACCESSORY POWER: 24VAC, 500mA max

MONITORED SAFETY INPUTS: 3 Main Board, 3 Expansion Board

TEMPERATURE SPECIFICATIONS: Without Heater:-4°F (-20°C) to 140°F (60°C)

Optional Heater(HTR)(ADD ON): -40°F (-40°C) to 140°F (60°C)

UL USAGE AND CLASSIFICATION: I, II, III, and IV

GATE TRAVEL SPEED: Opens 90 degrees in 13-15 seconds.

Construction:

P3 MOTOR: 110V Single Phase

OPERATOR DUTY RATING: continuous duty

CHASIS: Same bolt pattern/footprint, constructed with 1/4 in. gold zinc-plated steel for rust prevention.

WORM GEAR REDUCTION: Two commercial oil bath gearboxes providing 900:1 worm gear reduction.

COVER: High-density, 2-piece UV-resistant polyethylene cover.

OPERATOR WEIGHT: 175 lbs.

RECOMMENDED CAPACITIES: ½ HP – Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs

  • Max gate size: 22ft
  • Max gate weight: 2,000 lbs.
  • 1 horsepower motor

CSW200101U Package Includes:

1 – CSW200101UL Motor with control circuit board

1 – Built-in radio receiver

1 – Monitored safety device (Liftmaster LMRRUL photo eye)

1 – Free Liftmaster 811lm remote

Liftmaster CSW200101UL 24VDC High-Traffic Commercial Swing Gate Opener

The Liftmaster CSW200101U high traffic commercial swing gate opener is designed for commercial locations with high traffic volume.  Also built for heavy-duty applications such as large gated communities, residential developments, commercial complexes and private estates.  The CSW200101U Swing Gate Opener is has many feautures that set it apart from the competition.  Liftmaster P3 motor is engineered to run more than 1 million cycles over its lifetime.  Other features include: Legacy Elite heavy-duty commercial gear-driven, soft start/stop, mid-travel reversal, surge suppression, wireless dual-gate communication, emergency release, quick close/anti tailgate, and fire department compliance.  The CSW200101U swing gate operator also has a 5 year commercial warranty, and a 7 year residential waranty.  All of these features make the Liftmaster CSW200101UL a perfect choice for almost any swing gate opener application.

Features:

LED DIAGNOSTIC DISPLAY

PROGRAMMABLE AUXILIARY RELAYS

BI-PART RELAY

SYNCHORNIZED CLOSE

MECHANICAL LIMIT SYSTEM

EXTERNAL ALARM RESET SYSTEM

PRE-MOTION WARNING ALARM

ANTI-TAILGATE

QUICK CLOSE

HOMELINK® COMPATIBLE

SECURITY+ 2.0® ON-BOARD RADIO RECEIVER.

Warranty (by LiftMaster):

Commercial – 5 year
Residential –   7 year
